Universal Hinge Corp®
Universal Hinge Bolt-On Hinge ™
Bolt-On Hinge™ is available for All Types, All Sizes and All Pressure Ratings of CenTraVac Chiller Condensers and Evaporators
ELIMINATE HAZARDOUS RIGGING, DAVITS & FORKLIFTS TO "DROP THE HEADS”
Capability: Access Cover Weights from
100 lbs. to over 10,000 lbs.
Accommodates Cover Diameters from
12 inches to over 86 inches
Select Your Trane Condenser
Click On The Image For An Expanded Inside & Outside View Of The Bolt-On Hinge™
Size 250
Pressure Rating 150
Size 210
Pressure Rating 150
Size 142
Pressure Rating 150
Size 080
Pressure Rating 150
Size 030
Pressure Rating 150
TRANE CenTraVac Condenser Waterbox Cover Types
We can fabricate a Bolt-On Hinge™ to fit any type of TRANE Cover
Fabricated Non-Marine Waterbox, Welded Flat Plate
Non-Marine Cast Waterbox
Fabricated Non-Marine Waterbox, Welded Dome
Marine Style Waterbox Cover
Trane Size: 250 Pressure Rating: 150

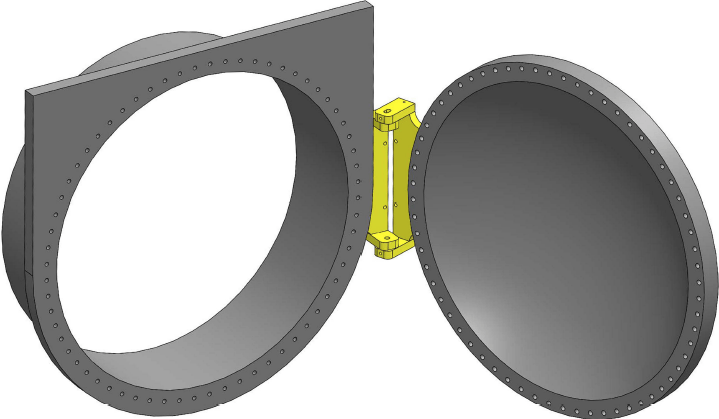

250-150 INSIDE

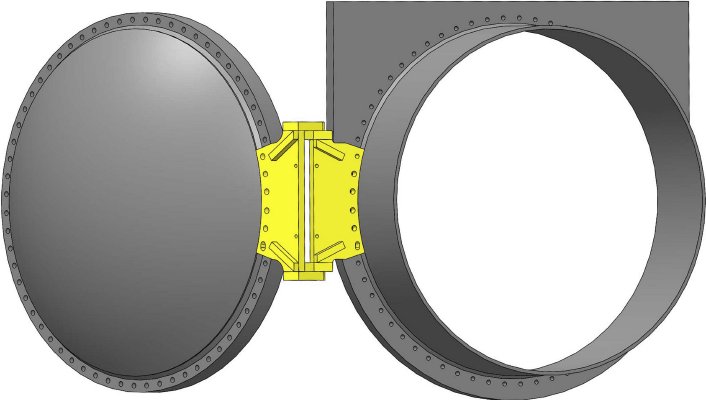

250-150 OUTSIDE
Trane Size: 030 Pressure Rating: 150

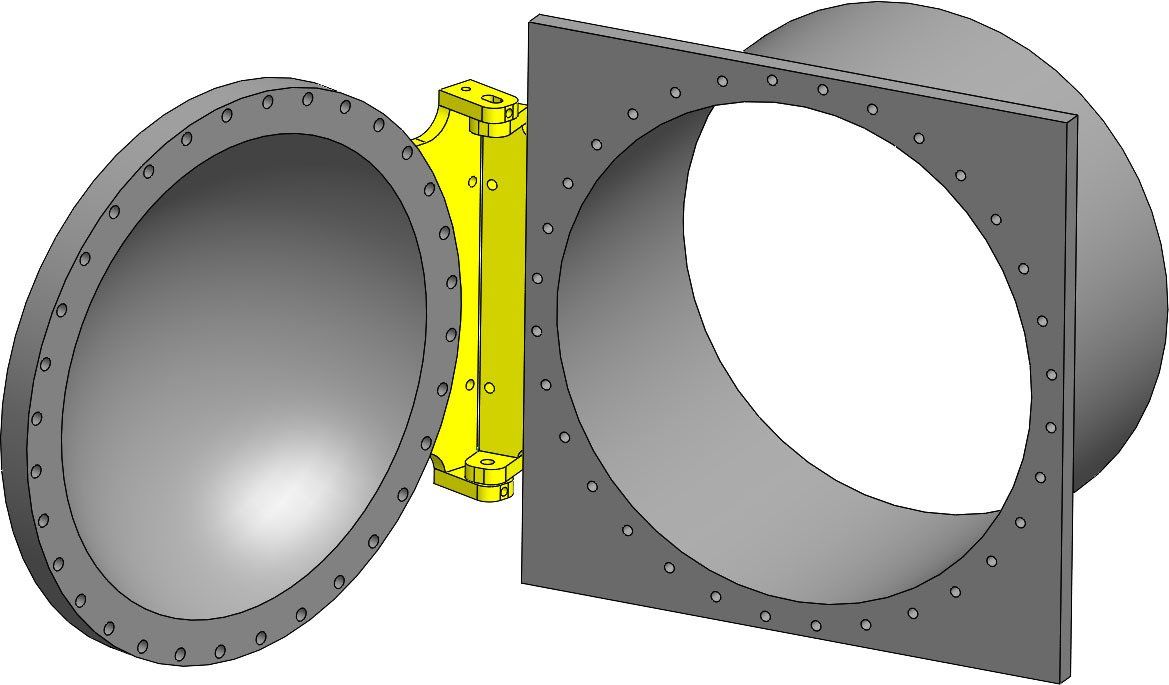

030-150 INSIDE

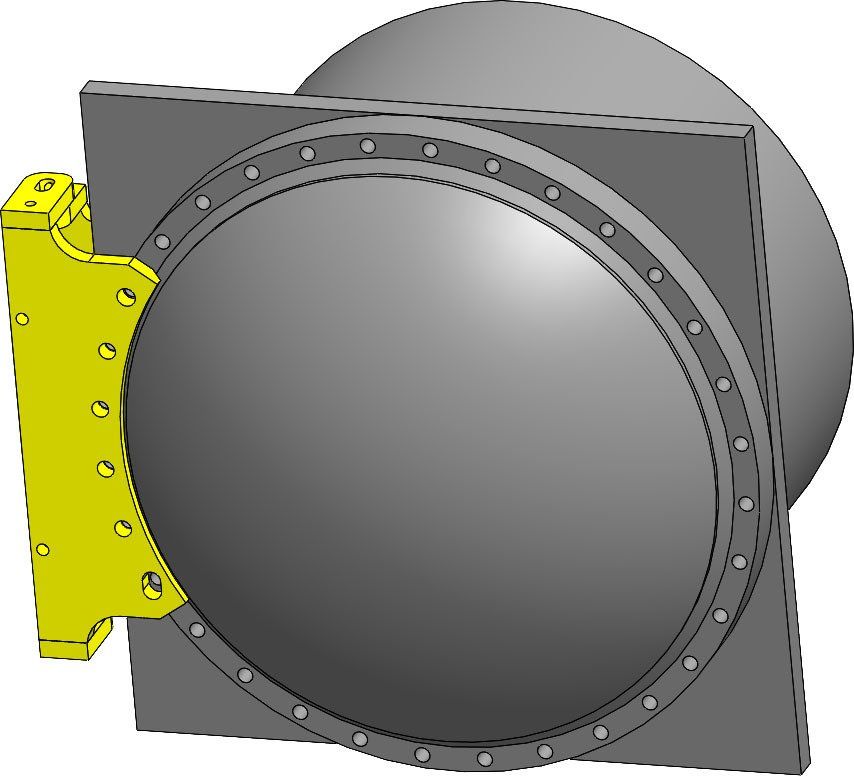

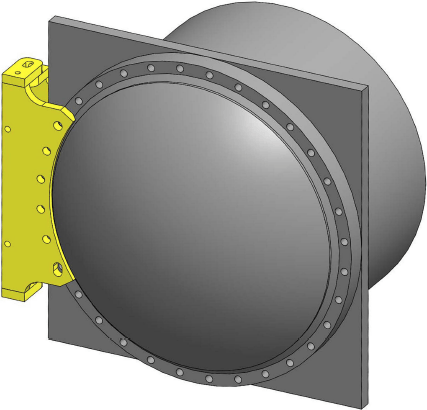

030-150 OUTSIDE
Trane Size: 080 Pressure Rating: 150

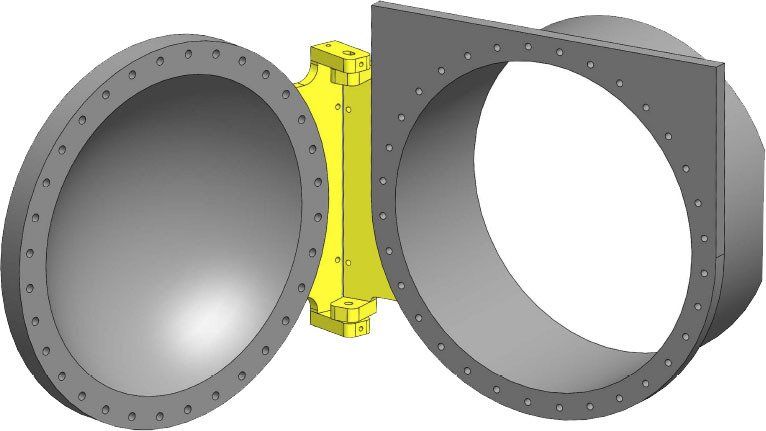

080-150 INSIDE

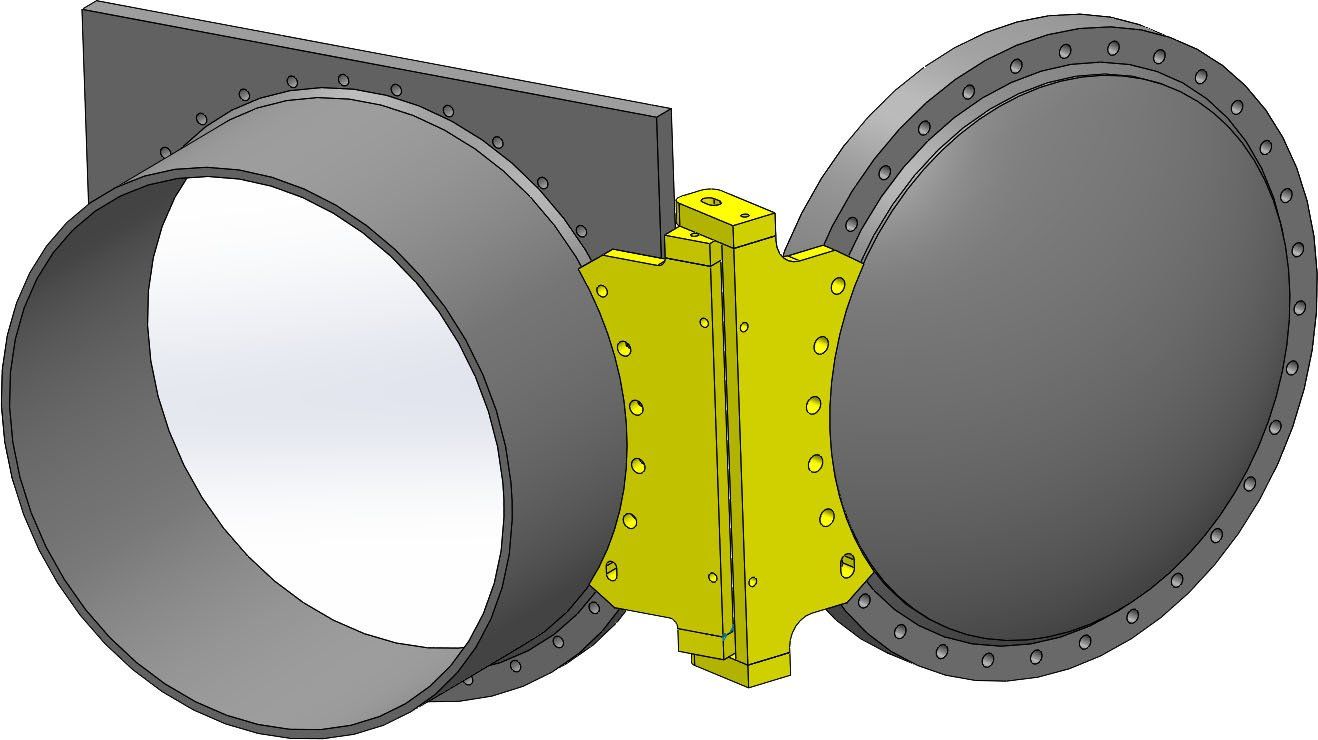

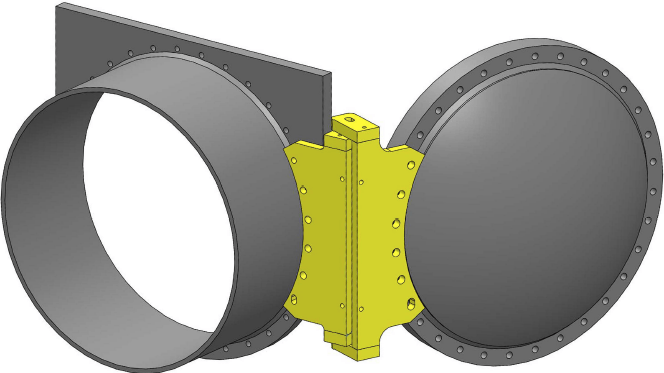

080-150 OUTSIDE
Trane Size: 210 Pressure Rating: 150

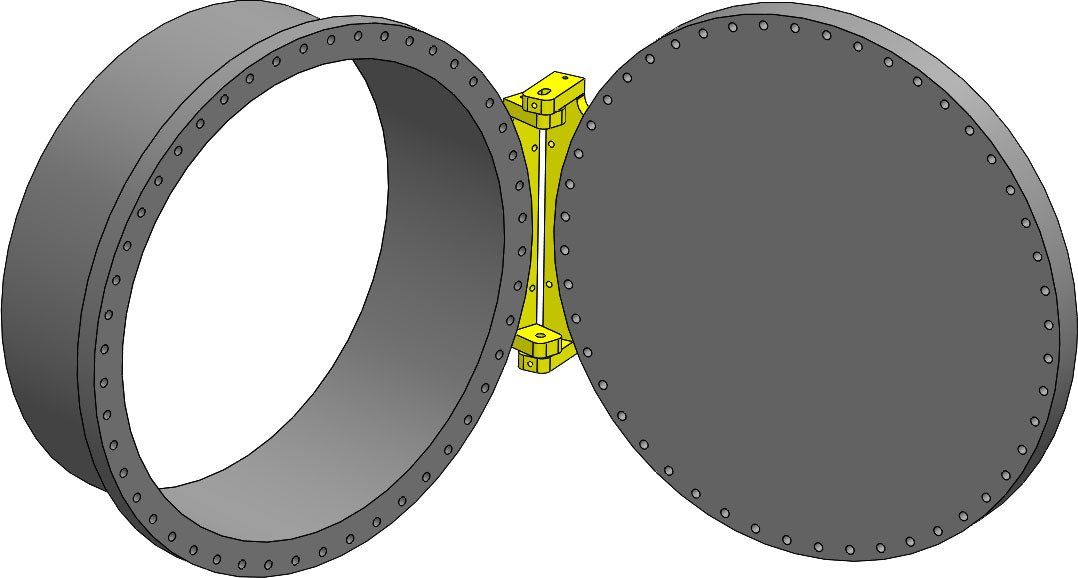

210-150 INSIDE

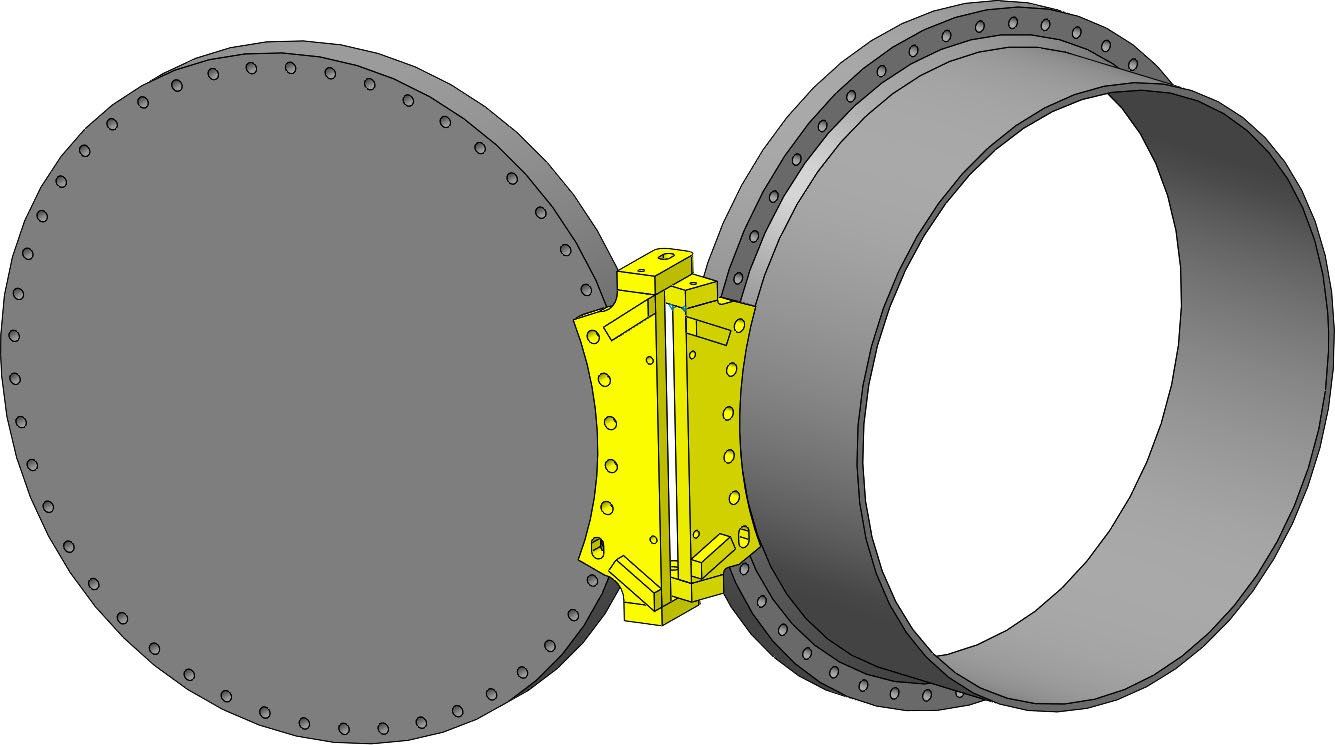

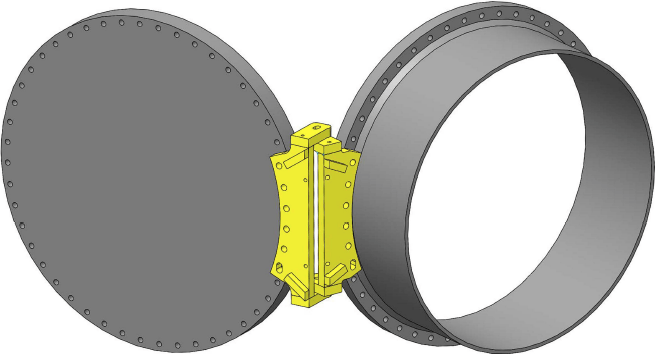

210-150 OUTSIDE
Trane Size: 142 Pressure Rating: 150

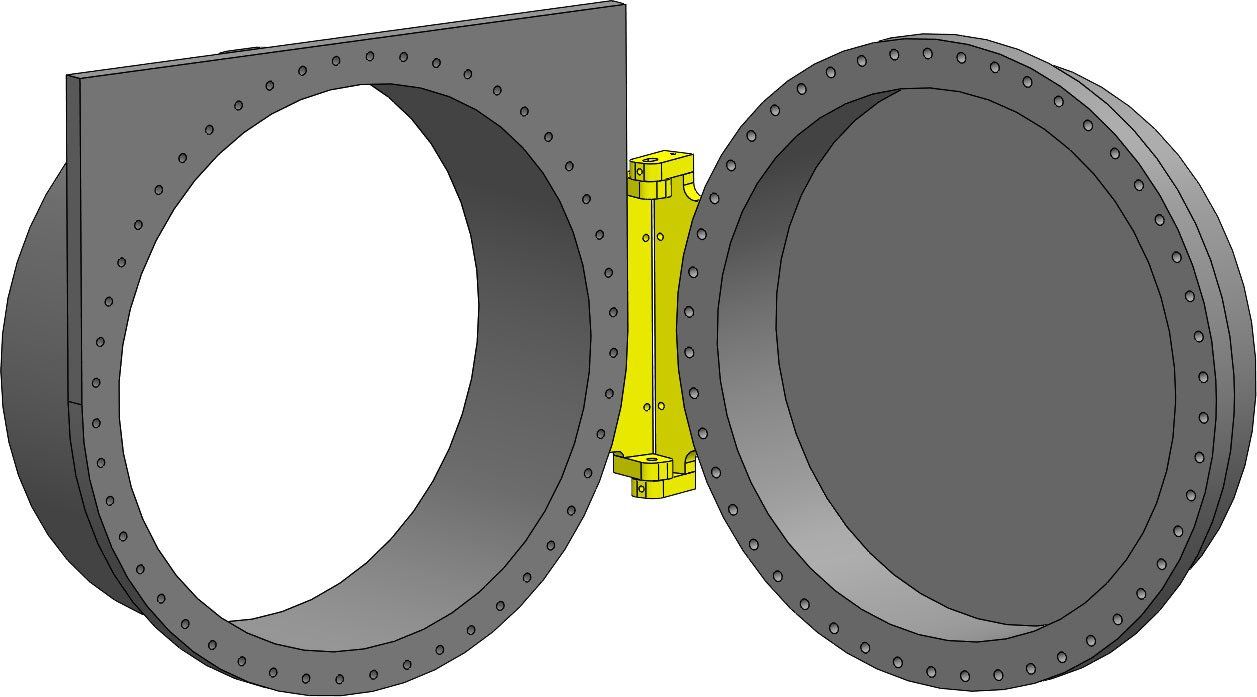

142-150 INSIDE

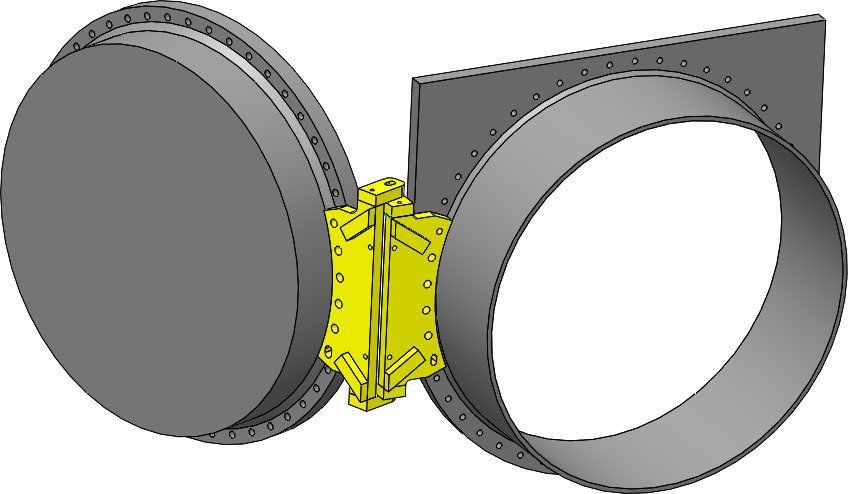

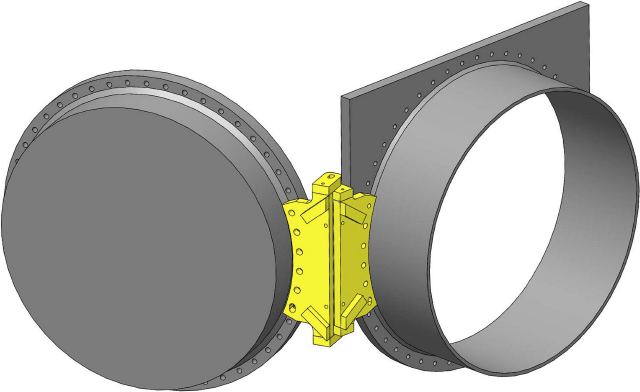

142-150 OUTSIDE
Trane Cover with Bolt-On Hinge™ in Operation
Bolt-On Hinge™ in Operation On a Trane Condenser Cover
Representative Installation
Every Bolt-On Hinge™ is custom made for your specific equipment. Therefore there are times when the hardware required to attach the hinge might be different. This video demonstrates an installation on a Trane Condenser Cover that utilized special hardware that is not typically used.
